| 不銹鋼 Stainless steel | 沉淀硬化不銹鋼 Preciptation hardeningStainless Steel | 鈦合金 Titanium Alloy | |
 | | | |
| 合金鋼 alloy Steel HRC<45 | 灰鑄鐵 Grey Cast Iron | 普通鋼 Commom Steel HRC<25 | 銅合金 Copper Alloy |
 | | | |
| 淬硬鋼 Harened Steel HRC>62 | 鋁合金 Aluminum si<9% | 鎳基高溫合金 Nicle Based Alloy | 復合材料 Composite Material |
 | | | |
備注：非常適合比較適合不適合
 | D≤12 | D>12 | |
| 0 -0.020 | 0 -0.030 | ||
 | d=6 | 8≤d≤10 | 12≤d≤16 |
| 0 -0.008 | 0 -0.009 | 0 -0.011 |

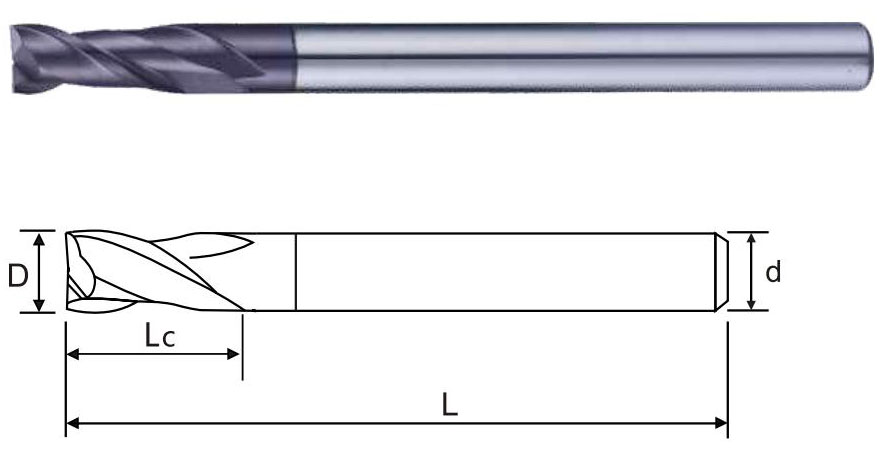

| 商品編號 Product number | 刃徑(D) Blade diameter | 刃長(Lc) Blade length | 柄徑(d) Shank diameter | 全長（L） Overall length | 刃數 Flute |
| SUS8502E020450 | 0.2 | 0.4 | 4 | 50 | 2 |
| SUS8502E030450 | 0.3 | 0.6 | 4 | 50 | 2 |
| SUS8502E040450 | 0.4 | 0.6 | 4 | 50 | 2 |
| SUS8502E050450 | 0.5 | 1.0 | 4 | 50 | 2 |
| SUS8502E060450 | 0.6 | 1.2 | 4 | 50 | 2 |
| SUS8502E070450 | 0.7 | 1.4 | 4 | 50 | 2 |
| SUS8502E080450 | 0.8 | 1.6 | 4 | 50 | 2 |
| SUS8502E090450 | 0.9 | 1.8 | 4 | 50 | 2 |
| SUS8502E100450 | 1.0 | 3.0 | 4 | 50 | 2 |
| SUS8502E120450 | 1.2 | 3.5 | 4 | 50 | 2 |
| SUS8502E150450 | 1.5 | 4.5 | 4 | 50 | 2 |
| SUS8502E180450 | 1.8 | 5.0 | 4 | 50 | 2 |
| SUS8502E200450 | 2.0 | 6.0 | 4 | 50 | 2 |
| SUS8502E250450 | 2.5 | 7.0 | 4 | 50 | 2 |
| SUS8502E300450 | 3.0 | 8.0 | 4 | 50 | 2 |
| SUS8502E300650 | 3.0 | 8.0 | 6 | 50 | 2 |
| SUS8502E350650 | 3.5 | 9.0 | 6 | 50 | 2 |
| SUS8502E400450 | 4.0 | 11.0 | 4 | 50 | 2 |
| SUS8502E400650 | 4.0 | 11.0 | 6 | 50 | 2 |
| SUS8502E500650 | 5.0 | 13.0 | 6 | 50 | 2 |
| SUS8502E600650 | 6.0 | 15.0 | 6 | 50 | 2 |
訂購：sus850-1 2刃立銑刀
