型號: Z5-0 -[待選參數]

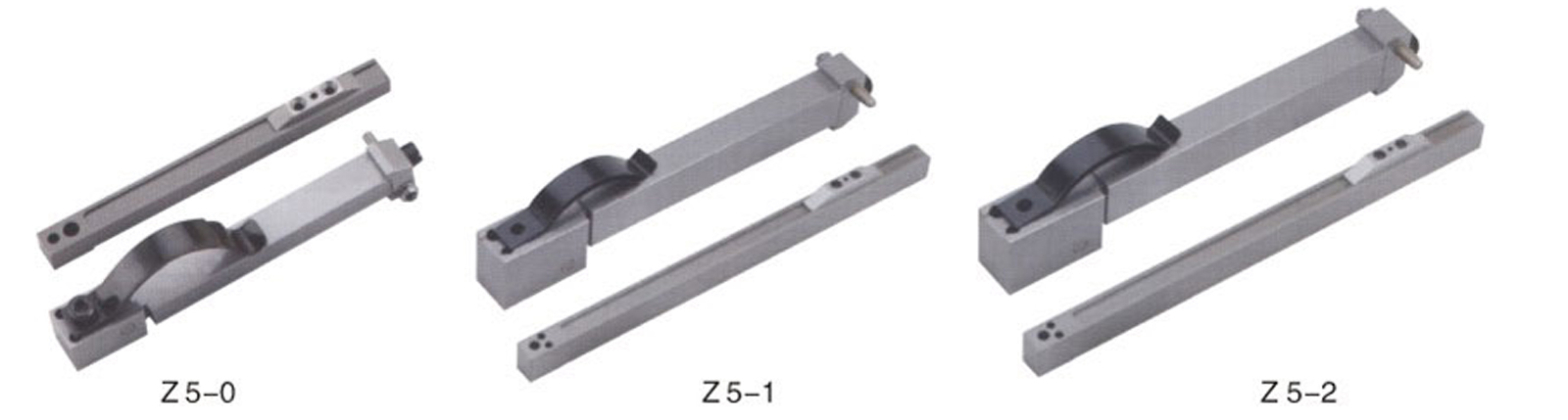

鎖模扣

LATCH LOCK

特點:安裝加工簡單,機械互鎖設計,安全可靠,可根據模具荷重選擇對應産品,        在模闆上至少要2套并對稱使用 。
       Characteristics: Installation and processing are simple. Design of mechanical        interlock is safe and        reliable. Connecting body and square positioning make product        more accurate. People can select        corresponding product according to die load.        There shall be at least 2 sets on template for        symmetrical installation.

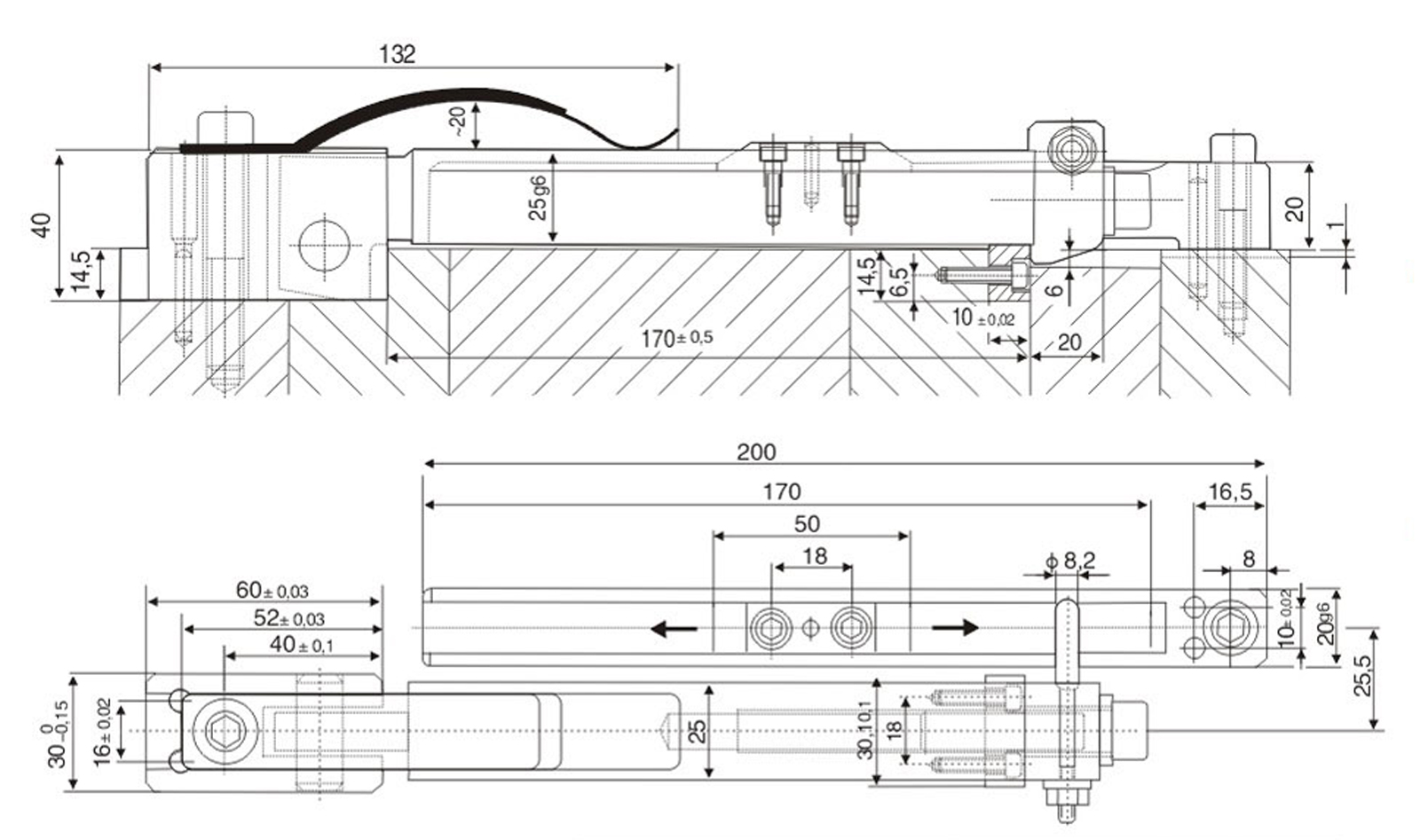

Z5-0

Order: Type No. x Pcs

Z5-0 X 10

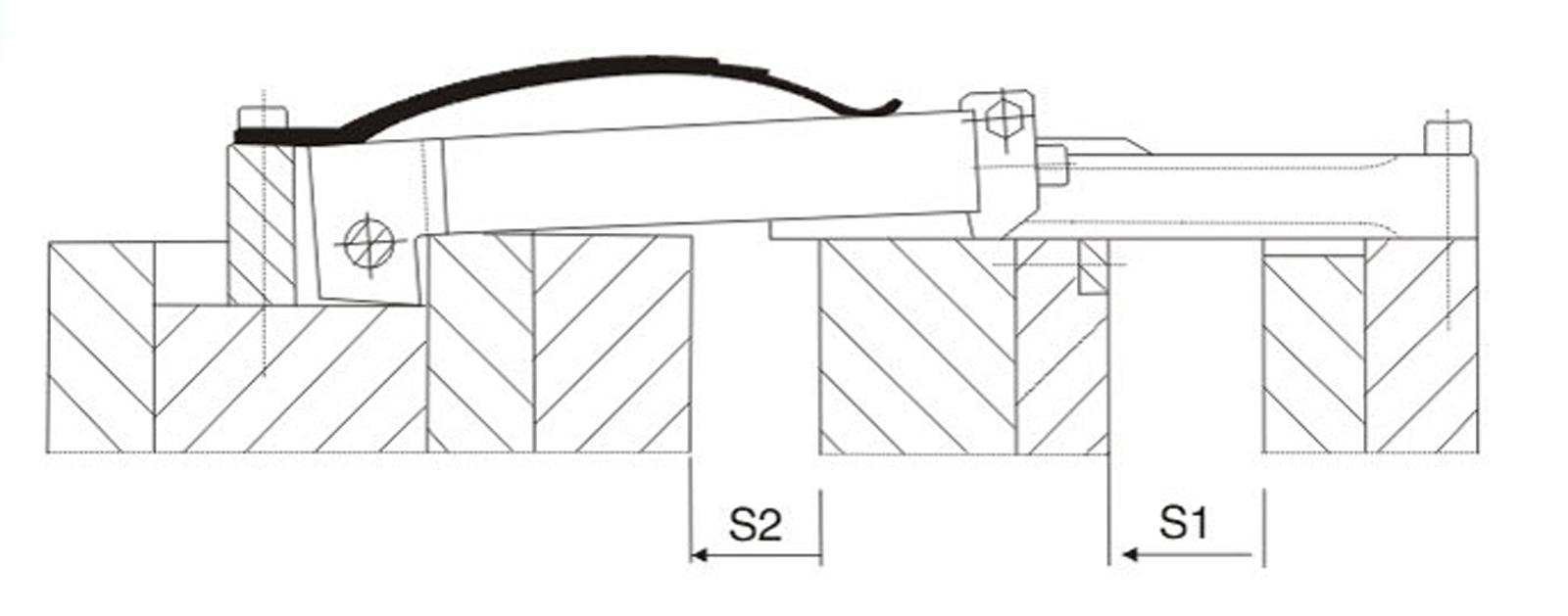

Example 使用例

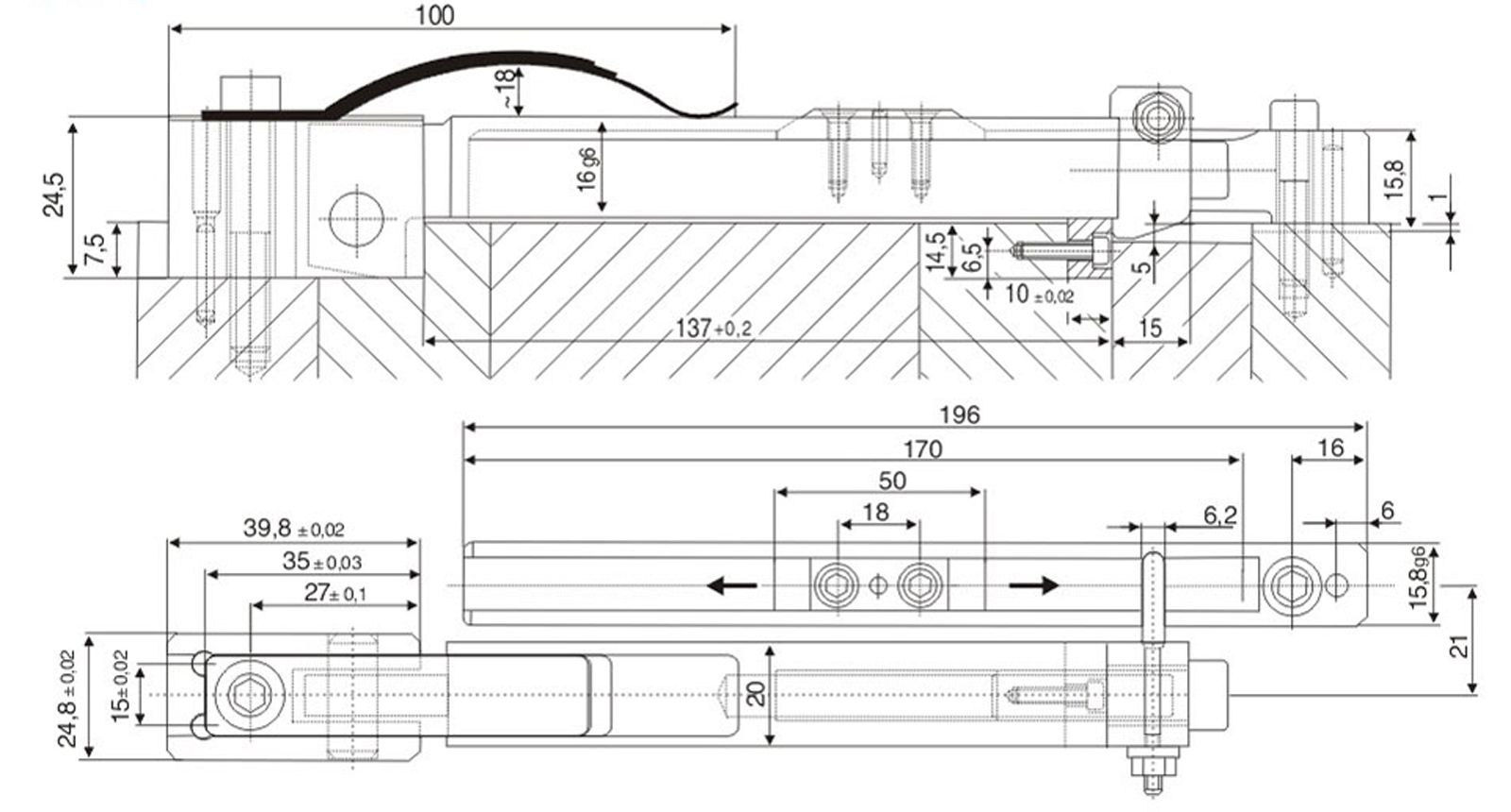

Z5-1

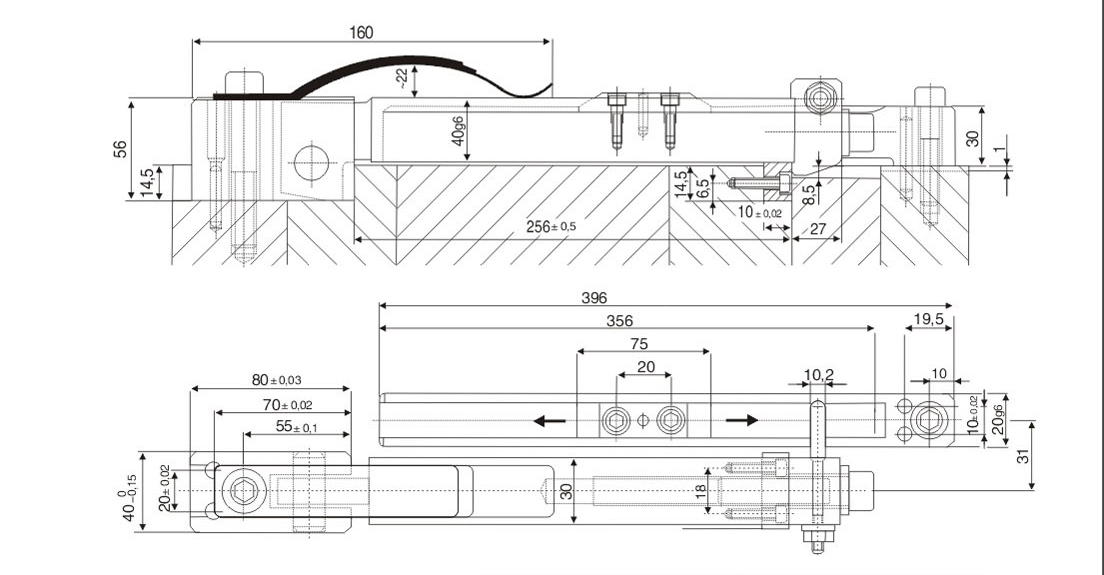

Z5-2

2D下載          3D下載
